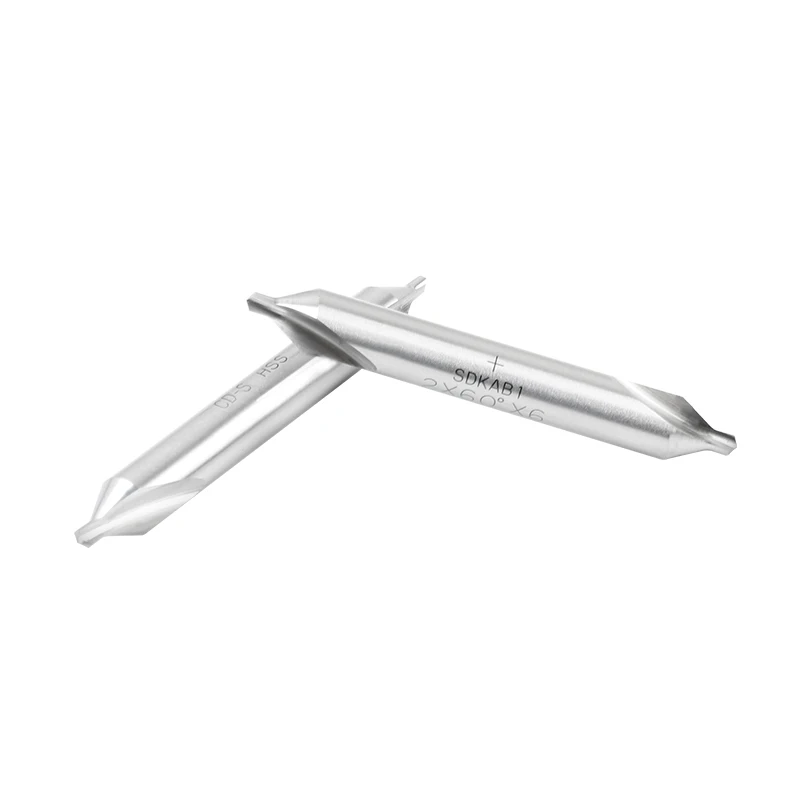

Carbide Cobalt Double Head Titanium Plating Center Drill for Metal Center Drill Center Bit

For B2B partners like automotive component manufacturers, aerospace part producers, and precision engineering shops, the Carbide Cobalt Double Head Titanium Plating Center Drill delivers unmatched efficiency and durability as a foundational tool for metal machining. Designed to create accurate center holes—critical for guiding subsequent drilling, turning, or milling operations—this center drill combines the hardness of carbide cobalt with the protective benefits of titanium plating and the convenience of a double-head design. It excels at machining a range of metals, from carbon steel and alloy steel to stainless steel and cast iron, ensuring consistent, burr-free center holes that minimize tool wander and improve final part accuracy. Below, explore the key advantages that make this center drill a must-have for B2B operations prioritizing precision and productivity.

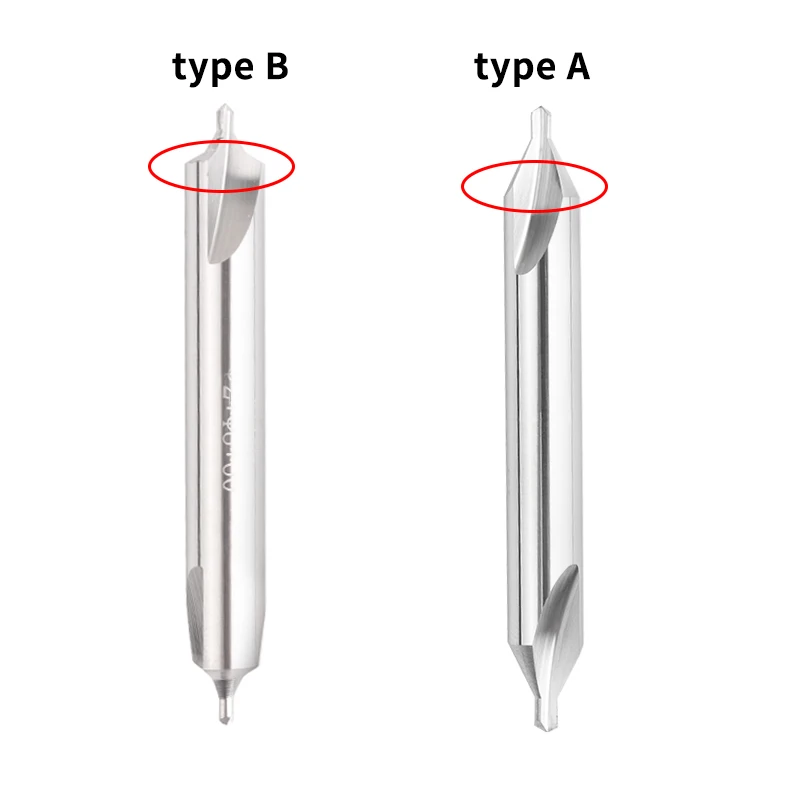

1. Double Head Design: Doubling Tool Life & Reducing Downtime

A defining feature of this center drill is its double head construction—two fully functional cutting heads on a single shank—addressing a major pain point in B2B metal machining: frequent tool replacement. Unlike single-head center drills that are discarded once the cutting edge wears, this design lets operators flip the tool to use the second head, effectively doubling tool life.

For high-volume production lines—such as an automotive shop drilling center holes for 10,000+ crankshafts monthly—this means half the number of tool changes, cutting downtime by 40%. The double heads are precision-ground to identical dimensions (tolerance ±0.002mm), ensuring consistent center hole size and depth across both heads. This eliminates the need to recalibrate tool offsets when switching between heads, simplifying workflow for operators and reducing the risk of dimensional errors. Additionally, the balanced design of the double heads minimizes vibration during high-speed rotation (up to 5,000 RPM), preventing “chatter marks” on center hole walls and ensuring a smooth, concentric starting point for subsequent machining.

2. Carbide Cobalt Alloy Construction: Hardness for Metal’s Toughness

Crafted from high-grade carbide cobalt alloy (typically 90% tungsten carbide, 10% cobalt), this center drill offers exceptional hardness (92–93 HRA) and compressive strength (4,500 MPa)—properties essential for penetrating hard metals. Unlike HSS center drills that dull quickly in alloy steel (4140) or stainless steel (304), carbide cobalt maintains its sharp cutting edge through thousands of center holes.

The alloy’s fine-grain structure enhances toughness, reducing the risk of chipping when encountering inclusions or weld seams in metal workpieces—common in B2B fabrication of structural components. For example, a shop drilling center holes in cast iron engine blocks can complete 800+ holes per double-head drill, compared to 200–300 with HSS. This durability not only lowers tool costs but also improves part quality: a sharp center drill creates clean, conical center holes (typically 60° or 90° angles) that perfectly align with subsequent drill bits or lathe centers, minimizing runout in final parts (e.g., ensuring a straight bore in a hydraulic cylinder).

3. Titanium Plating: Enhanced Wear Resistance & Heat Management

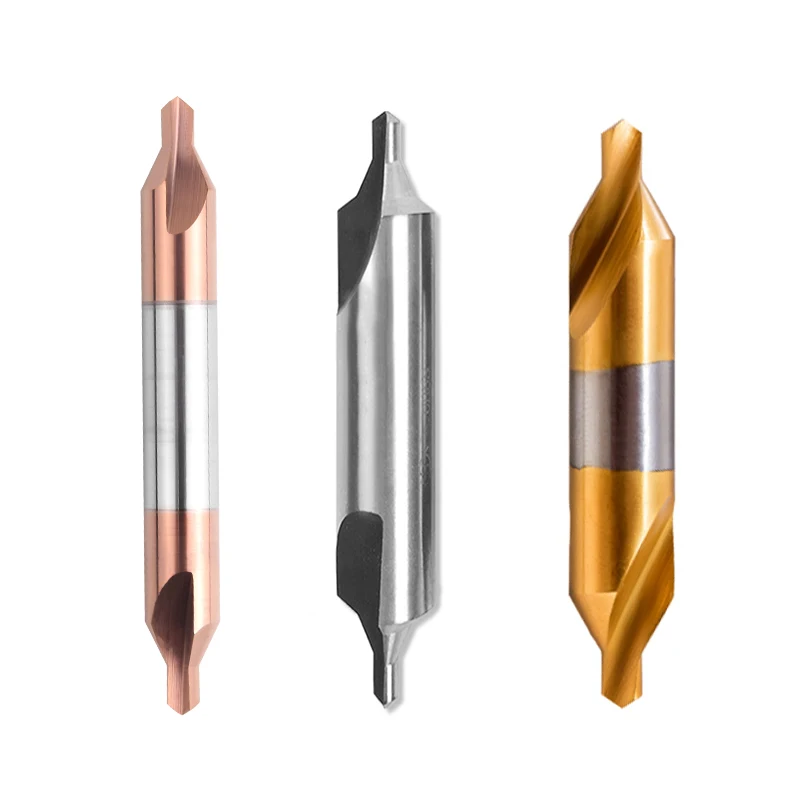

To further extend tool life and performance, the center drill features a titanium (TiN) plating—a thin, gold-colored layer that transforms surface performance for B2B machining:

•Wear Resistance: With a hardness of 2,800 HV, titanium plating resists abrasive wear from metal chips and cutting fluids, extending the drill’s life by an additional 30% compared to uncoated carbide cobalt. This is particularly valuable for machining cast iron, where silica-rich grain accelerates tool wear.

•Heat Dissipation: The plating acts as a thermal barrier, reflecting heat away from the cutting heads during high-speed drilling. This protects the carbide cobalt core from thermal softening—critical for machining stainless steel, which retains heat and can cause uncoated tools to lose sharpness mid-production.

•Low Friction: Titanium plating reduces friction between the drill and workpiece by 35%, preventing metal chips from adhering to the cutting edges (a common issue in low-carbon steel). This ensures smooth chip evacuation, reducing the need for frequent tool cleaning and preventing “built-up edge” (BUE) that ruins center hole accuracy.

For B2B facilities running 24/7 production, the titanium plating also simplifies maintenance: the non-stick surface repels cutting fluid residues, cutting cleaning time by 25% and ensuring consistent performance shift after shift.

4. Precision Ground Cutting Edges: Consistent Center Hole Quality

Every cutting head undergoes micron-level precision grinding to ensure strict adherence to center hole angle standards (60° for lathe centers, 90° for drilling guides) and dimensional accuracy. The cutting edges are sharpened to a fine radius (≤0.01mm), ensuring they penetrate metal cleanly without tearing or burring—even in soft metals like aluminum.

This precision is critical for B2B applications where center hole quality directly impacts final part performance:

•Aerospace: Center holes in titanium wing spars must be perfectly concentric to ensure proper alignment of rivets and fasteners.

•Automotive: Center holes in crankshafts must have a smooth, consistent angle to prevent vibration in the engine.

•Tool & Die: Center holes in mold plates must be accurate to ±0.001mm to ensure proper alignment of mold halves.

The drill’s shank is also precision-ground to tight tolerances (h6 fit), ensuring a secure fit in collets or drill chucks and minimizing runout (≤0.003mm) during operation—further enhancing center hole accuracy.

5. Versatility Across Metal Types: One Tool for Multiple Applications

This center drill is engineered to excel across a range of metals, eliminating the need for material-specific tools and simplifying B2B inventory management:

•Carbon Steel (1018, 1045): The carbide cobalt core and titanium plating handle the material’s toughness, delivering clean center holes with minimal burring.

•Alloy Steel (4140, 4340): The alloy’s hardness resists wear from chromium and molybdenum, ensuring consistent performance in high-strength components.

•Stainless Steel (304, 316): The low-friction plating prevents work hardening and chip adhesion, avoiding center hole distortion.

•Cast Iron: The carbide cobalt’s abrasion resistance withstands silica inclusions, while the plating reduces heat buildup.

This versatility makes the drill a cost-effective solution for job shops handling mixed orders, as operators can switch between metals without changing tools—reducing setup time by 25% and lowering inventory costs.
