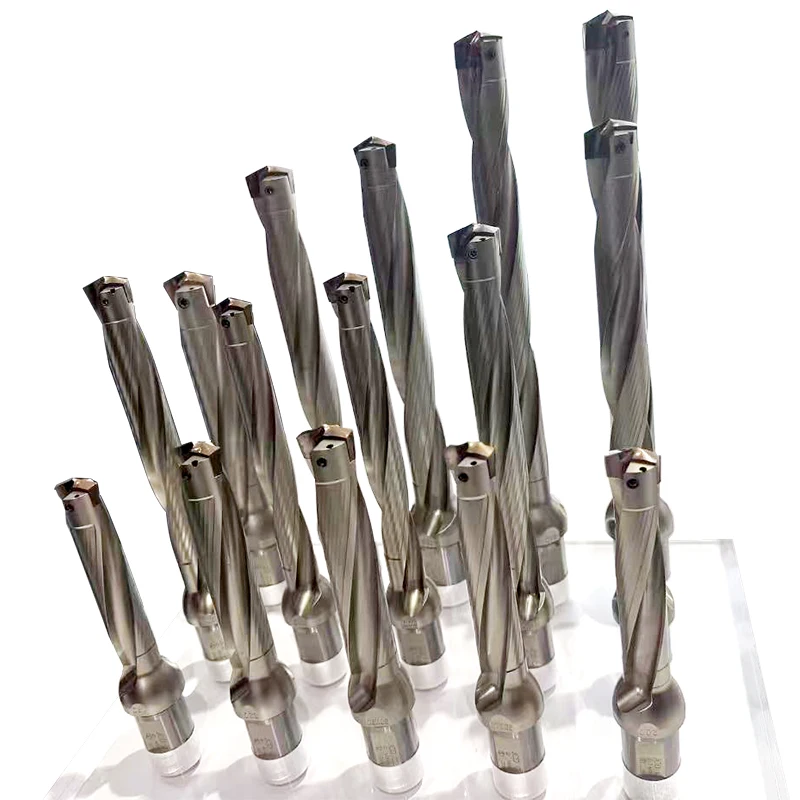

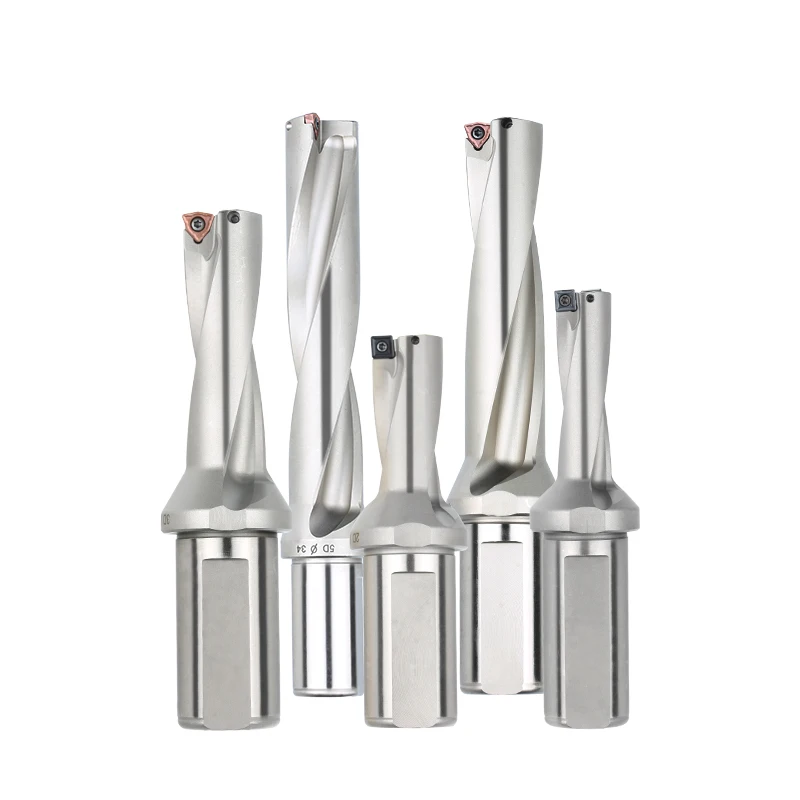

Crown Deep Hole U-Drill with Inner Cold Shedding Type Pull Back Drill Bit Shank for SE Premium Product Category Drill Bits

For B2B partners like aerospace component manufacturers, heavy machinery producers, and energy equipment fabricators, the Crown Deep Hole U-Drill—featuring an inner cold shedding design and pull back drill bit shank—sets a new standard for precision in the SE premium drill bit category. Engineered exclusively for deep hole drilling (typically 5–15x diameter), this U-drill addresses the critical challenges of deep machining: heat buildup, chip clogging, and hole accuracy. Its inner cold system delivers targeted coolant to the cutting zone, while the pull back shank ensures stable tool withdrawal—making it ideal for machining tough materials like alloy steel, stainless steel, and titanium. As a flagship product in the SE premium line, it combines durability, efficiency, and reliability for B2B operations where deep hole quality directly impacts component performance. Below, explore the key advantages that make this U-drill a staple for high-end deep machining.

1. Inner Cold Shedding Design: Solving Deep Hole Heat & Chip Issues

The defining innovation of this Crown U-drill is its inner cold shedding system—a built-in coolant channel that delivers high-pressure coolant directly to the cutting edge, addressing two of deep hole drilling’s biggest pain points:

•Heat Dissipation: Deep hole drilling generates extreme heat due to prolonged tool-workpiece contact (often 10–15 seconds per hole). The inner cold system circulates coolant at 5–10 bar pressure, drawing heat away from the cutting zone and preventing thermal damage to both the drill bit (tungsten carbide core) and workpiece (e.g., alloy steel engine blocks). This reduces tool wear by 40% compared to conventional U-drills, extending service life for B2B facilities running high-volume production.

•Efficient Chip Evacuation: The coolant flow also flushes chips out of the deep hole in real time, eliminating clogging that causes “chip welding” (metal chips adhering to the drill bit) or “hole scoring” (scratched inner walls). For B2B shops machining deep holes in stainless steel (a material prone to stringy chips), this ensures clean, smooth hole interiors (Ra ≤1.2μm) that require no secondary honing—cutting finishing time by 30%.

The inner cold design is compatible with water-soluble or oil-based coolants, making it adaptable to diverse B2B machining environments (e.g., aerospace shops using high-performance synthetic coolants for titanium).

2. Pull Back Drill Bit Shank: Stability in Deep Hole Withdrawal

Unlike standard U-drills that risk hole damage during withdrawal, this Crown model features a pull back drill bit shank—a specialized design that ensures controlled, stable tool removal from deep holes:

•Reduced Hole Wall Contact: The pull back shank’s tapered geometry minimizes contact between the tool and hole walls during withdrawal, preventing scratches or deformation. This is critical for precision components like hydraulic cylinder bores (where even 0.01mm of wall damage causes leakage) or aerospace fuel lines (requiring strict dimensional tolerance).

•Vibration Dampening: The shank’s rigid construction absorbs vibration during withdrawal, avoiding “chatter” that can widen the hole’s exit point—a common issue with flexible shanks in deep drilling. For B2B facilities machining thick workpieces (e.g., 100mm alloy steel blocks), this ensures consistent hole diameter (±0.005mm) from entry to exit.

•Compatibility with Deep Hole Machines: The pull back shank is engineered to fit standard deep hole drilling machines (e.g., BTA drills, gun drills) and CNC lathes with deep hole modules, eliminating the need for custom adapters. This seamless integration reduces setup time by 25% for B2B shops switching between shallow and deep drilling tasks.

3. SE Premium Category Construction: Durability for Tough Materials

As a flagship product in the SE premium drill bit category, this Crown U-drill is built with ultra-high-grade materials to withstand the rigors of deep hole drilling in hard metals:

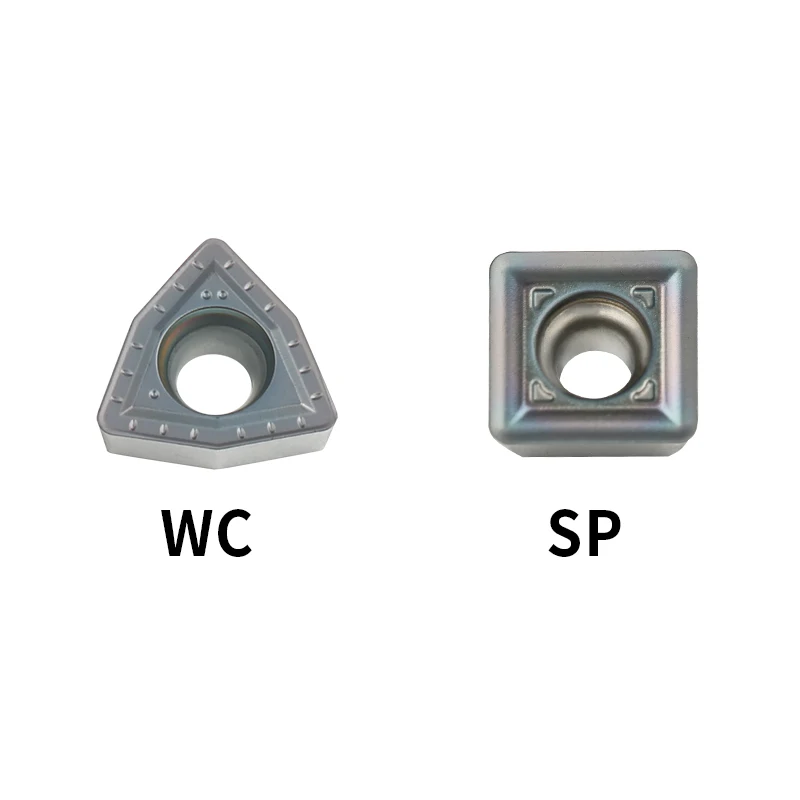

•Tungsten Carbide Cutting Edges: The drill’s cutting zone uses submicron tungsten carbide (94% WC content) with a TiAlN coating, delivering a hardness of 93 HRA. This resists abrasion from alloy steel (4140, 4340) and titanium (Ti-6Al-4V), ensuring sharp edges through 500+ deep holes—compared to 200+ with standard U-drills.

•Steel Alloy Shank: The pull back shank is crafted from heat-treated 42CrMo alloy steel (60 HRC), offering exceptional tensile strength to handle the high torque of deep drilling. It also undergoes a black oxide coating for corrosion resistance, protecting against coolant-related rust in long-term B2B use.

•Precision Grinding: Every component—from the coolant channels to the cutting edges—undergoes micron-level grinding, ensuring the drill bit runs true (runout ≤0.003mm) at high speeds (up to 2,500 RPM). This precision is essential for B2B applications like machining turbine blades, where deep hole alignment directly impacts aerodynamic performance.

4. Optimized for Deep Hole Drilling (5–15x Diameter)

This U-drill is engineered specifically for deep hole drilling ranges (5–15x diameter), a sweet spot for B2B industries like:

•Aerospace: Drilling fuel passage holes (8–12x diameter) in titanium engine components.

•Heavy Machinery: Creating lubrication channels (10–15x diameter) in alloy steel gearboxes.

•Energy: Machining coolant holes (5–8x diameter) in stainless steel nuclear reactor parts.

Its design balances rigidity and chip flow to handle these depths:

•Short Flute Length: Unlike long-flute drills that flex in deep holes, this U-drill uses a compact flute design (matched to diameter) for maximum rigidity, preventing hole wander (misalignment) in thick workpieces.

•Increased Core Thickness: The drill’s core is 30% thicker than standard U-drills, enhancing stability during prolonged drilling cycles and reducing the risk of bit breakage—a costly issue in deep hole machining where broken bits often require workpiece scrapping.

5. B2B Efficiency: Reducing Cycle Time & Cost

For B2B operations, this Crown U-drill delivers measurable efficiency gains:

•Faster Drilling Speeds: The inner cold system and sharp carbide edges enable feed rates up to 0.15mm/rev—30% faster than conventional deep hole drills. A shop machining 1,000 10mm-diameter x 100mm-deep holes in alloy steel can reduce total cycle time from 8 hours to 5.5 hours.

•Lower Tool Consumption: The premium construction and inner cold cooling extend tool life by 40%, reducing the number of drill bits needed for large orders. For example, a B2B manufacturer producing 10,000 hydraulic cylinders can cut tool costs by $15,000 annually.

•Minimal Rework: The drill’s precision and chip control reduce scrap rates by 25%, a critical savings for high-cost materials like titanium or Inconel.
