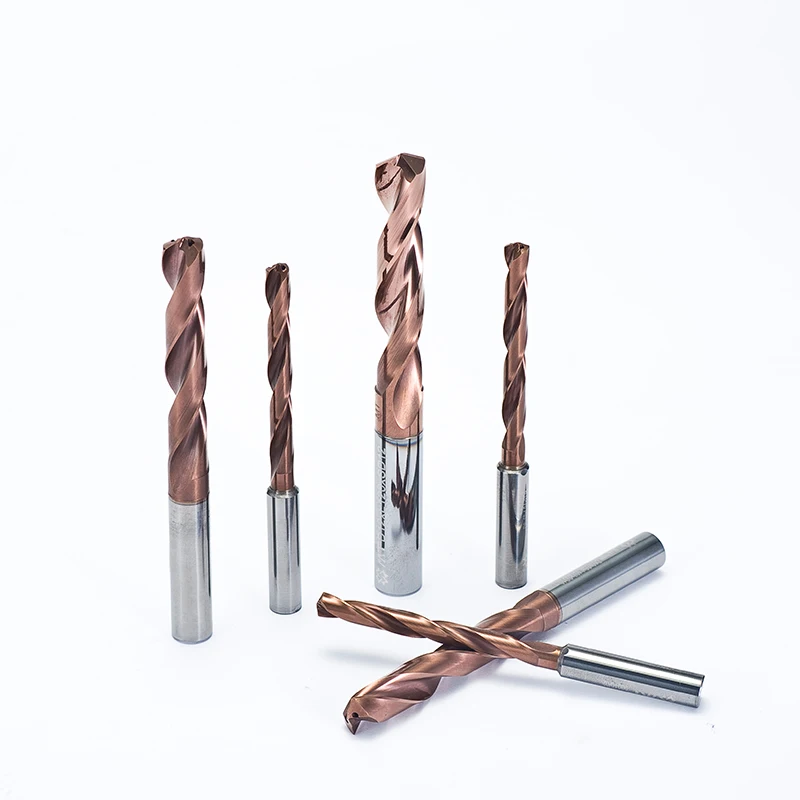

Coated 3D Tungsten Carbide Drill Bits Internally and Externally Carbon Steel Cutting Tool Stainless Steel Drilling Lathe

For B2B partners like automotive manufacturers, metal fabrication shops, and industrial machinery producers, the Coated 3D Tungsten Carbide Drill Bits redefine precision and durability in steel drilling applications. Engineered with a 3D-optimized flute design, dual internal/external coating, and high-purity tungsten carbide construction, these drill bits excel at penetrating carbon steel, stainless steel (304/316), and alloy steels—materials notorious for challenging conventional drills with their hardness, toughness, and work-hardening tendencies. Whether used in CNC lathes, drill presses, or automated drilling lines, they deliver clean holes, extended tool life, and consistent performance—critical for B2B operations prioritizing efficiency and quality. Below, explore the key advantages that make these drill bits a game-changer for steel drilling.

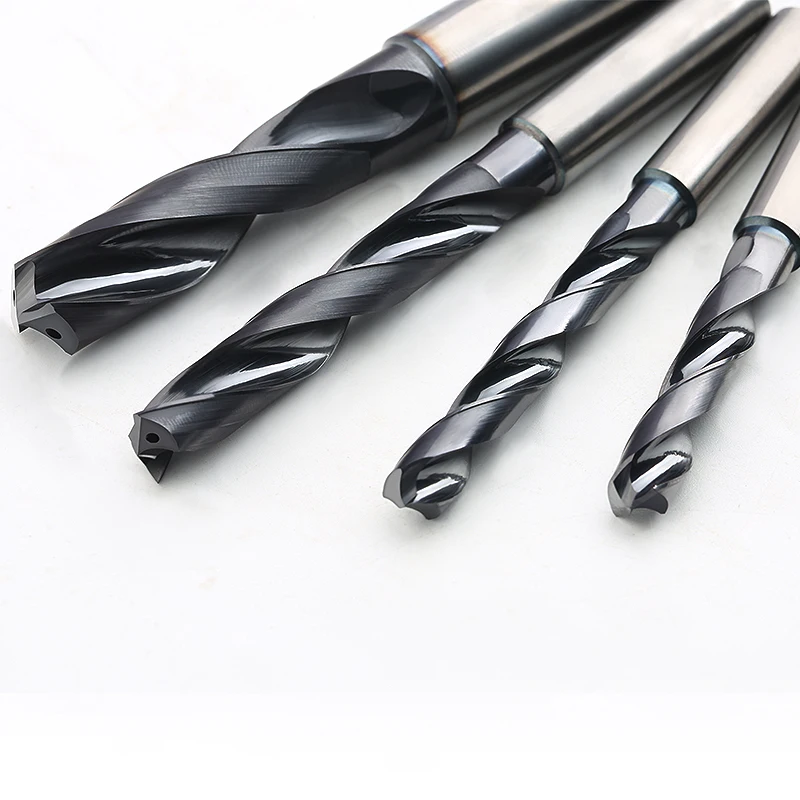

1. 3D-Optimized Flute Geometry: Engineered for Steel’s Challenges

A standout feature of these drill bits is their 3D-designed flute geometry—a precision-engineered structure that addresses the unique demands of drilling steel:

•Aggressive Helix Angle (30°–35°): Promotes efficient chip evacuation, a critical factor for steel drilling where long, stringy chips can clog flutes, cause overheating, or scratch hole walls. The helix angle is optimized to break chips into manageable pieces, preventing jams even in deep holes (up to 5x diameter).

•Web Thickness Progression: The drill’s core thickens gradually from tip to shank, enhancing rigidity while reducing friction. This minimizes deflection when drilling hard materials like 4140 alloy steel, ensuring hole straightness (±0.01mm/100mm) and preventing “bell-mouthing” (irregular hole openings) that require costly rework.

•Split Point Tip (135°): The self-centering tip eliminates the need for pre-drilling or spotting, reducing setup time by 20% for B2B shops. It also distributes cutting forces evenly, preventing tip wander in slippery stainless steel—critical for applications like drilling bolt holes in flanges or hydraulic manifolds.

This 3D optimization ensures the drill bits maintain stability at high speeds (up to 3,000 RPM), delivering consistent hole quality across thousands of cycles—even in challenging materials like work-hardened 316 stainless steel.

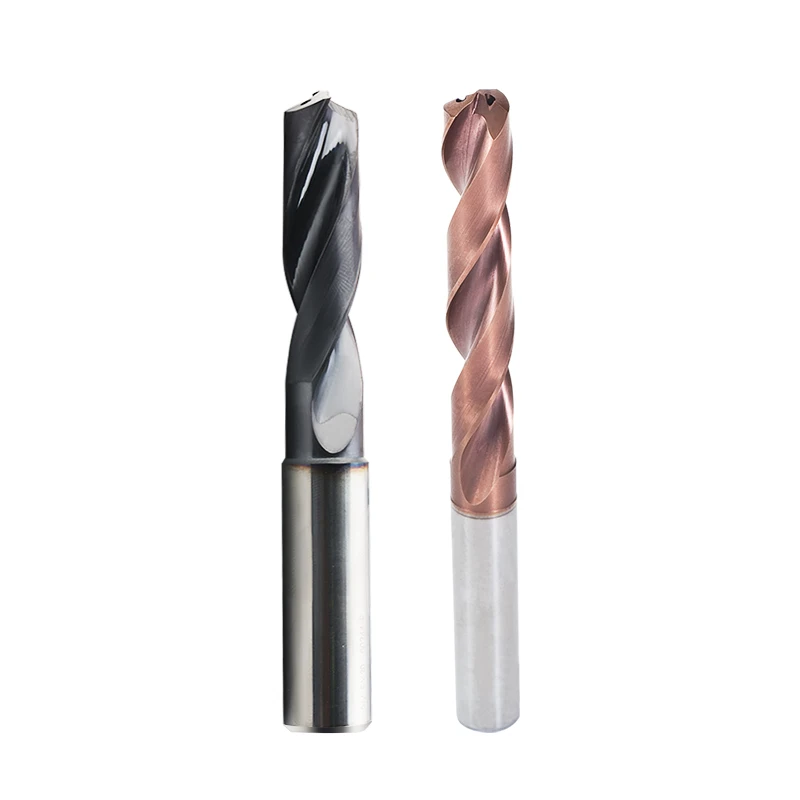

2. Dual Coating: Internal & External Protection for Extended Life

These drill bits feature a dual-layer coating system applied to both internal (flute) and external (shank) surfaces—maximizing wear resistance and performance in steel:

•External Coating (TiAlN): A titanium aluminum nitride layer (hardness 3,200 HV) that resists abrasive wear from steel’s tough grain structure. It also acts as a thermal barrier, withstanding temperatures up to 800°C to prevent heat-induced softening of the tungsten carbide core. This is especially valuable for high-speed drilling of carbon steel, where friction generates significant heat.

•Internal Coating (CrN): A chromium nitride layer applied to flute surfaces to reduce friction between chips and the drill bit. This low-friction barrier prevents chip adhesion—common in stainless steel drilling due to the material’s high ductility—ensuring smooth chip flow and reducing the risk of flute clogging.

Together, these coatings extend tool life by 3–4x compared to uncoated or single-coated drill bits. For B2B facilities drilling 10,000+ holes monthly (e.g., automotive chassis manufacturers), this translates to fewer tool changes, lower downtime, and reduced per-hole drilling costs.

3. High-Purity Tungsten Carbide Core: Hardness for Steel’s Toughness

Crafted from high-purity tungsten carbide (WC-Co alloy) with a 94% tungsten carbide content, these drill bits offer exceptional hardness (92 HRA) and compressive strength (4,600 MPa)—properties essential for penetrating hard steels. Unlike HSS drills that dull quickly in 304 stainless steel or hardened carbon steel (30+ HRC), tungsten carbide maintains its sharp cutting edge through thousands of holes.

The fine-grain carbide structure (submicron particles) enhances toughness, reducing the risk of chipping when encountering inclusions or weld seams in steel—common in B2B fabrication of structural components. For example, a shop drilling holes in carbon steel I-beams can complete 500+ holes per bit, compared to 100–150 with HSS—cutting tool replacement frequency by 70%. The carbide core also enables faster feed rates (up to 0.2mm/rev), reducing cycle time for high-volume production runs.

4. Versatility Across Steel Types: One Bit for Multiple Materials

These drill bits are engineered to excel across a range of steel alloys, eliminating the need for material-specific tools and simplifying B2B inventory management:

•Carbon Steel (1018, 1045): The 3D flutes and TiAlN coating handle the material’s toughness, delivering clean holes with minimal burring—ideal for structural brackets, shafts, and automotive stampings.

•Stainless Steel (304, 316): The split point tip and CrN-coated flutes prevent work hardening and chip adhesion, ensuring consistent performance in food processing equipment, medical devices, and marine components.

•Alloy Steel (4140, 4340): The rigid carbide core and progressive web thickness tackle the material’s high tensile strength, making it suitable for drilling gearbox parts, hydraulic cylinders, and aerospace fasteners.

This versatility is a boon for B2B job shops handling mixed orders, as operators can switch between steel types without changing drill bits—reducing setup time by 25% and minimizing tooling costs.

5. Compatibility with Lathes & Drilling Systems

Designed for seamless integration with industrial equipment, these drill bits fit standard CNC lathes (e.g., Haas ST-30, Mazak Quick Turn), manual drill presses, and automated drilling lines. Their precision-ground shanks ensure tight fits in collets or chucks, minimizing runout (≤0.003mm) that degrades hole accuracy.

For B2B facilities using automated systems, the drill bits’ consistent performance and predictable wear patterns support lights-out manufacturing—enabling 24/7 production without manual intervention. The bits also feature laser-etched size markings for quick identification, reducing operator errors in high-pressure production environments.

Whether drilling small-diameter holes (3mm) in stainless steel medical instruments or large-diameter holes (20mm) in carbon steel structural plates, these bits deliver the reliability and precision B2B clients demand.
