Customizable OEM Tungsten Carbide Insert TNMG160404 Turning Parting Tool for CNC Machine Inserts

For B2B partners like automotive component manufacturers, metal fabrication shops, and high-volume CNC lathe operators, the Customizable OEM Tungsten Carbide Insert TNMG160404 Turning Parting Tool delivers unmatched precision, durability, and adaptability for parting and turning tasks. Engineered with high-grade tungsten carbide and optimized for CNC compatibility, this tool excels at cutting through metals ranging from mild steel and stainless steel to non-ferrous alloys like aluminum and brass. Its standardized TNMG160404 format ensures reliable performance, while full OEM customization lets B2B operations tailor the tool to unique machining needs—eliminating inefficiencies and reducing scrap. Below, explore the key advantages that make this parting tool a staple for precision CNC manufacturing.

1. Tungsten Carbide Construction: Durability for Heavy-Duty Parting

At the core of this tool is a high-purity tungsten carbide insert—a material renowned for its exceptional hardness (91–93 HRA) and wear resistance. Unlike HSS inserts that dull quickly during parting (a process that generates high friction and heat), tungsten carbide maintains its sharp cutting edge through thousands of cuts, even when machining tough materials like 304 stainless steel or 4140 alloy steel. This durability translates to 4–6x longer tool life than HSS alternatives, reducing insert replacement frequency and unplanned downtime for B2B facilities.

The carbide insert’s high compressive strength (up to 4,600 MPa) also withstands the extreme forces of parting—critical for cutting thick workpieces (up to 50mm diameter) or high-tensile metals. For example, a shop producing steel automotive shafts can complete 300+ parting operations per TNMG160404 insert, compared to just 50–70 with HSS. This efficiency lowers per-unit machining costs and helps meet tight production deadlines for high-volume orders.

2. TNMG160404 Standardized Design: Compatibility & Consistency

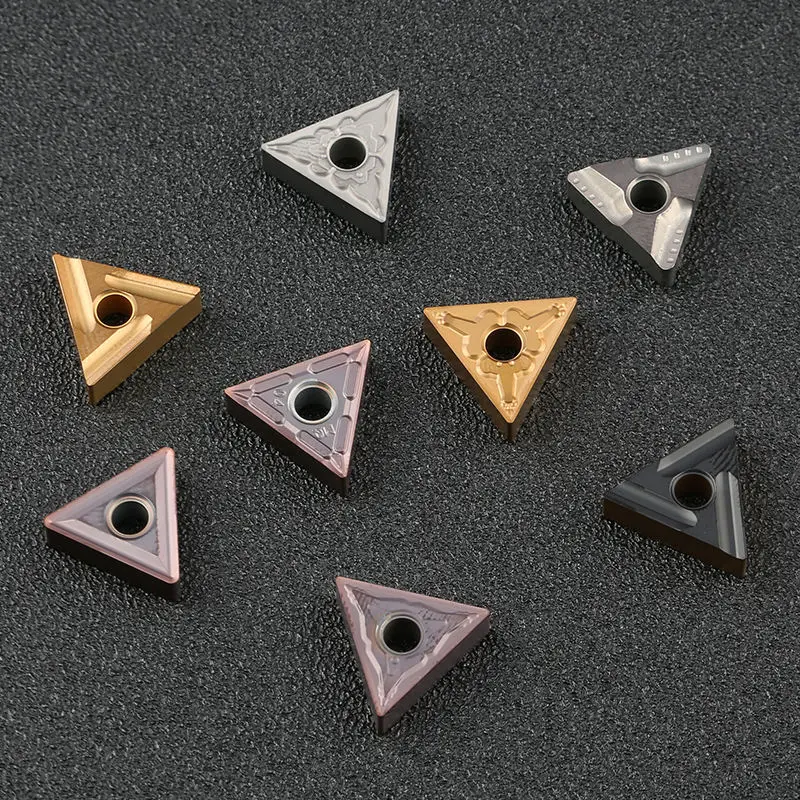

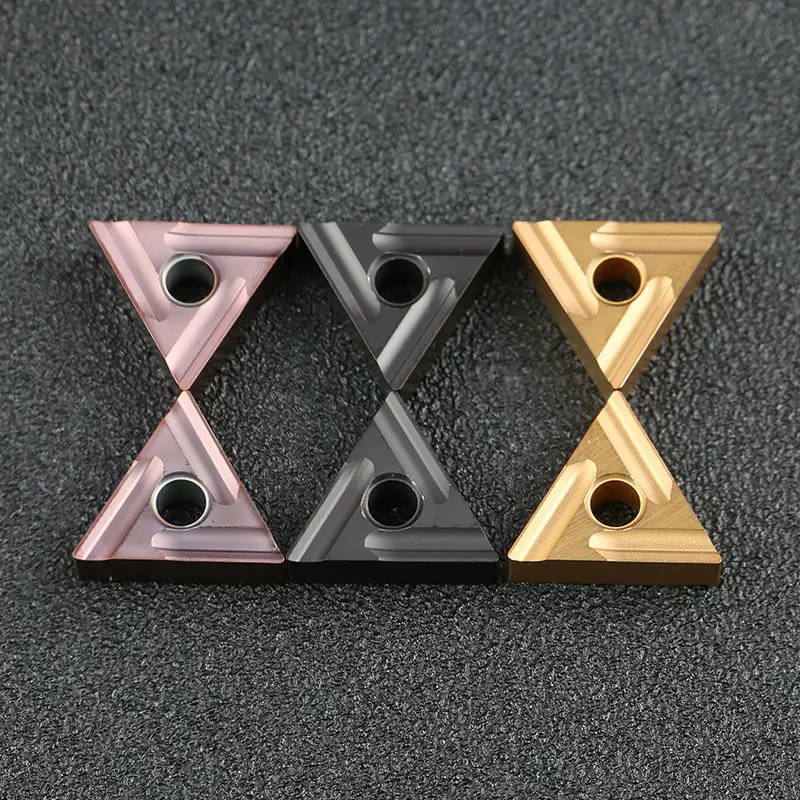

The TNMG160404 model follows global ISO standards for turning inserts, ensuring seamless integration with most CNC lathe tool holders (e.g., Sandvik, Kennametal, or generic OEM holders). The “TNMG” designation indicates a triangular insert with a negative rake angle—ideal for stable parting and turning—while “160404” specifies key dimensions: 16mm insert width, 4.76mm thickness, and 0.4mm nose radius. This standardization eliminates the need for custom adapters, simplifying inventory management for B2B facilities with mixed CNC fleets.

The precision-machined insert pocket (when paired with compatible holders) ensures ≤0.003mm runout, guaranteeing consistent cut depth and parting accuracy (±0.005mm) across every workpiece. For B2B operations producing standardized parts—such as brass fittings or aluminum spacers—this consistency eliminates dimensional variation, reducing scrap rates by 20–25% compared to non-standard inserts. The triangular shape also provides three usable cutting edges, extending insert life further by allowing edge rotation when one edge wears.

3. Full OEM Customization: Tailored to B2B Workflows

Recognizing that B2B machining needs vary widely, the tool offers comprehensive OEM customization to align with specific applications:

•Coating Options: Custom PVD (TiAlN, TiCN) or CVD (Al₂O₃) coatings to enhance performance for target materials—e.g., TiAlN for stainless steel (reduces heat buildup) or TiCN for aluminum (prevents galling).

•Edge Geometry: Modified rake angles (positive or neutral) for specialized metals (e.g., positive rake for soft aluminum, neutral for hardened steel) or custom nose radii (0.2mm–1.0mm) for finer surface finishes.

•Material Grades: High-performance carbide blends (e.g., submicron carbide for precision parting or wear-resistant grades for abrasive cast iron) to match unique machining challenges.

•Branding & Packaging: Laser-etched part numbers, company logos, or batch codes for inventory tracking, plus bulk packaging options (100+ inserts per box) for large-scale manufacturers.

For niche applications—such as parting titanium aerospace components or precision turning copper electrical parts—this customization ensures the tool performs optimally, avoiding the compromises of off-the-shelf inserts.

4. Optimized for Parting & Turning: Dual-Function Versatility

While designed primarily as a parting tool, the TNMG160404 insert excels at secondary turning tasks—such as facing, chamfering, or profiling—eliminating the need for separate tools. This dual-functionality reduces tool changeover time by 30–40% for B2B shops handling complex parts (e.g., a steel bolt that requires parting, facing, and chamfering).

The insert’s geometry is optimized for efficient chip evacuation during parting, with a narrow cross-section that minimizes friction and prevents chip jamming— a common issue that damages workpieces or breaks inserts. For B2B facilities machining ductile metals like copper or mild steel, this chip control ensures clean, burr-free cuts, reducing post-machining deburring time by 50%.

5. CNC-Optimized Performance: Speed & Reliability for Automation

Engineered specifically for CNC machine compatibility, the tool supports high spindle speeds (up to 3,500 RPM for non-ferrous metals) and fast feed rates (up to 0.2mm/rev for steel), maximizing productivity for automated B2B lines. Its consistent performance and predictable wear pattern make it ideal for lights-out manufacturing—enabling 24/7 production without manual intervention.

The insert’s rigid design also minimizes vibration during high-speed parting, ensuring smooth surface finishes (Ra ≤1.2μm) even for cosmetic parts like aluminum trim pieces. For quality control teams, this reliability means fewer rejected parts and easier compliance with industry standards (e.g., ISO 8688 for turning inserts or ASTM A370 for steel components).
