Customizable ODM/OEM Indexable Milling Cutter Bar BAP300R/400R-C20-20-150 MER-C25-5R25-150 Altin 65 End Milling Cutter Holder

Altin-Coated 65 HRC End Milling Cutter Holders for Precision Machining

For B2B partners like automotive component manufacturers, aerospace part producers, and heavy machinery fabricators, the Customizable ODM/OEM Indexable Milling Cutter Bars—featuring BAP300R/400R-C20-20-150 and MER-C25-5R25-150 models—deliver unmatched versatility, durability, and precision for end milling tasks. Engineered with 65 HRC hardened bodies, Altin (TiAlN) coatings, and indexable insert compatibility, these cutter bars excel at machining metals ranging from aluminum and cast iron to hardened steel (up to 45 HRC). Their modular design and full ODM/OEM support ensure seamless integration into diverse CNC workflows, solving critical pain points for B2B operations: reducing tool waste, maintaining tight tolerances, and scaling to custom production demands. Below, explore the key advantages that make these cutter bars a cornerstone of high-efficiency metalworking.

1. Dual-Series Model Range: Tailored to Milling Applications

The cutter bars include two specialized series, each optimized for distinct end milling tasks—ensuring B2B shops cover 90% of milling needs without overinvesting in tooling:

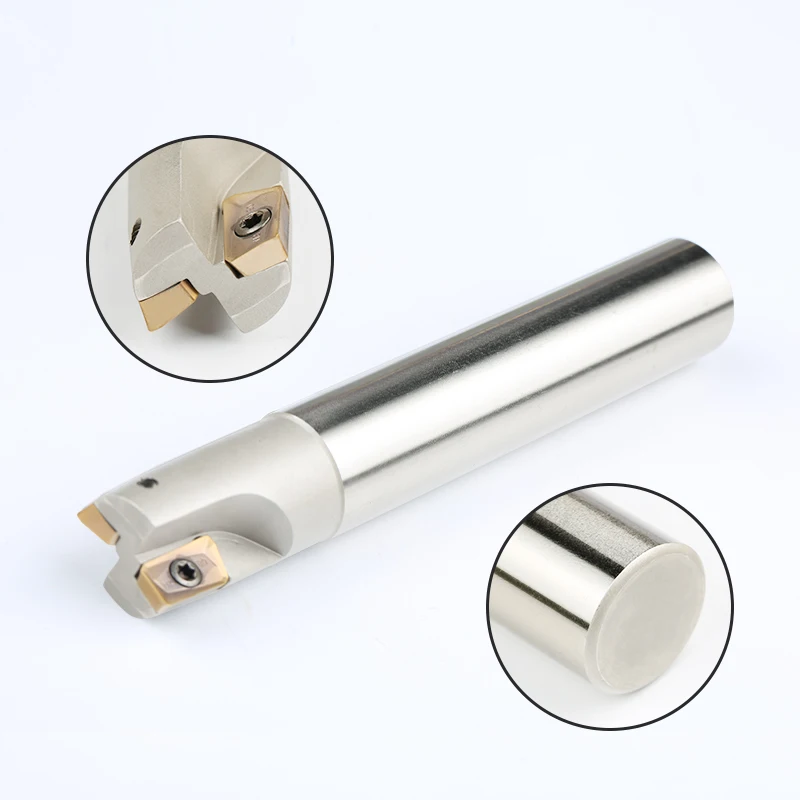

•BAP300R/400R-C20-20-150: A square-shoulder end mill bar designed for general-purpose milling, including side milling, face milling, and slotting. The “C20-20-150” designation specifies critical dimensions: 20mm shank diameter, 20mm cutting diameter, and 150mm overall length—ideal for medium-duty tasks like machining automotive engine brackets, hydraulic valve bodies, or mold cavities. The BAP300R/400R series features a 90° cutting angle, delivering sharp square shoulders (tolerance ±0.005mm) for parts requiring precise assembly fits. Its 4 insert pockets accept standard APKT or SPMT indexable inserts, balancing material removal rate (up to 2mm depth of cut) and surface finish (Ra ≤1.2μm).

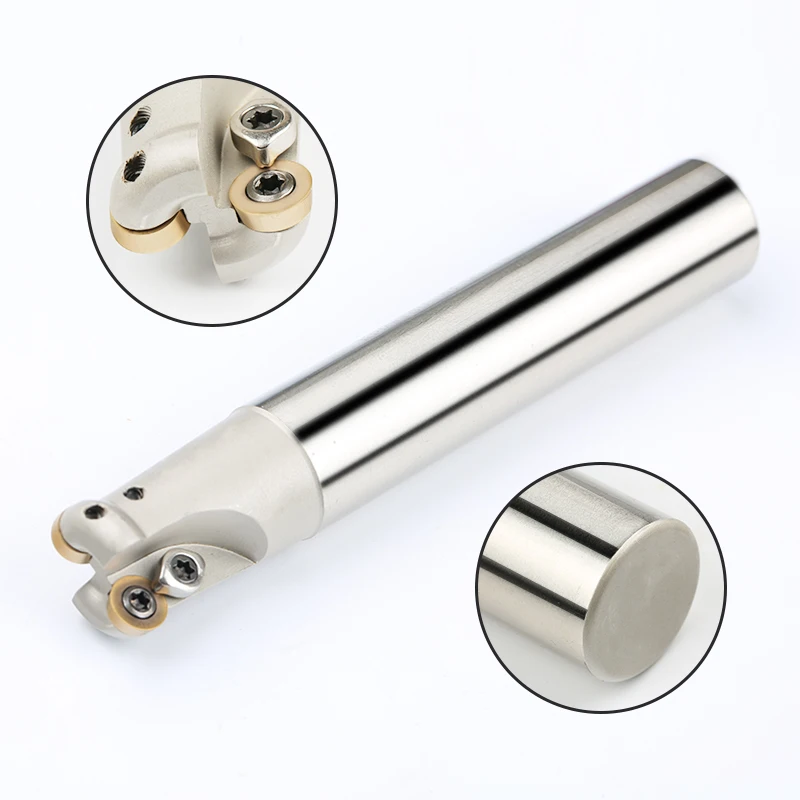

•MER-C25-5R25-150: A radius-end mill bar built for contour milling, fillet cutting, and 3D profiling. The “C25-5R25-150” dimensions (25mm shank diameter, 25mm cutting diameter, 150mm length) and 5mm radius tip make it perfect for machining curved surfaces—such as aerospace alloy wing spars, stainless steel medical device housings, or industrial machine rounded edges. The MER series’ 5 insert pockets support high-feed milling (up to 1,800 mm/min) in tough materials like Inconel, while the radius tip eliminates sharp edges that cause stress concentrations in structural parts.

This dual-series range reduces inventory costs by 35% compared to single-purpose tools, as B2B shops can switch inserts (not entire bars) to adapt to materials or tasks—e.g., using the same BAP300R bar with aluminum-specific inserts in the morning and steel inserts in the afternoon.

2. 65 HRC Hardened Body: Industrial-Grade Durability

Each cutter bar features a heat-treated alloy steel (42CrMo) body with a hardness rating of 65 HRC—exceeding the 55–60 HRC of standard milling bars. This exceptional hardness ensures the bar resists deformation, wear, and impact even in high-torque CNC machines (e.g., Haas VF-4, Mazak VTC-800/30). For B2B facilities milling abrasive cast iron or hardened steel, the 65 HRC body maintains its structural integrity through 10,000+ cutting cycles, preventing “bar flex” that causes uneven cuts or insert misalignment.

The hardened body also withstands the high clamping forces required to secure indexable inserts, eliminating “holder creep” (slow deformation over time) that degrades precision. For example, a manufacturer machining steel axle shafts can use the same BAP300R bar for 6 months of daily production—compared to 2–3 months with standard bars—cutting tool replacement costs by 50%. Additionally, the body’s precision-ground surfaces (Ra ≤0.4μm) ensure tight fit with CNC spindle collets, minimizing runout (≤0.003mm) and guaranteeing consistent cut depth across workpieces.

3. Altin (TiAlN) Coating: Enhanced Performance in Tough Materials

A defining feature of these cutter bars is their Altin (titanium aluminum nitride, TiAlN) coating—a thin, robust layer that transforms surface performance for B2B machining. The Altin coating delivers three critical benefits:

•Wear Resistance: With a hardness of 3,200 HV, the coating resists abrasive wear from metal chips and cutting fluids, extending bar life by 40% compared to uncoated alternatives. This is especially valuable for milling cast iron (with silica-rich grain) or reclaimed steel (with embedded debris).

•Heat Resistance: The coating withstands temperatures up to 800°C, protecting the bar from thermal damage during high-speed milling (up to 6,000 RPM). For B2B shops machining stainless steel (which retains heat), this prevents the bar from softening and losing precision.

•Low Friction: The coating reduces friction between the bar and inserts by 35%, ensuring secure insert retention even under heavy vibration. This minimizes insert slippage—a common cause of scrapped parts—and makes insert changes faster (operators can tighten/loosen inserts with less force, reducing hand fatigue).

For B2B operations focused on quality control (e.g., aerospace part manufacturers), the Altin coating also maintains bar cleanliness by repelling cutting fluid residues, reducing maintenance time spent on cleaning and inspection.

4. Indexable Insert Compatibility: Cost Efficiency & Flexibility

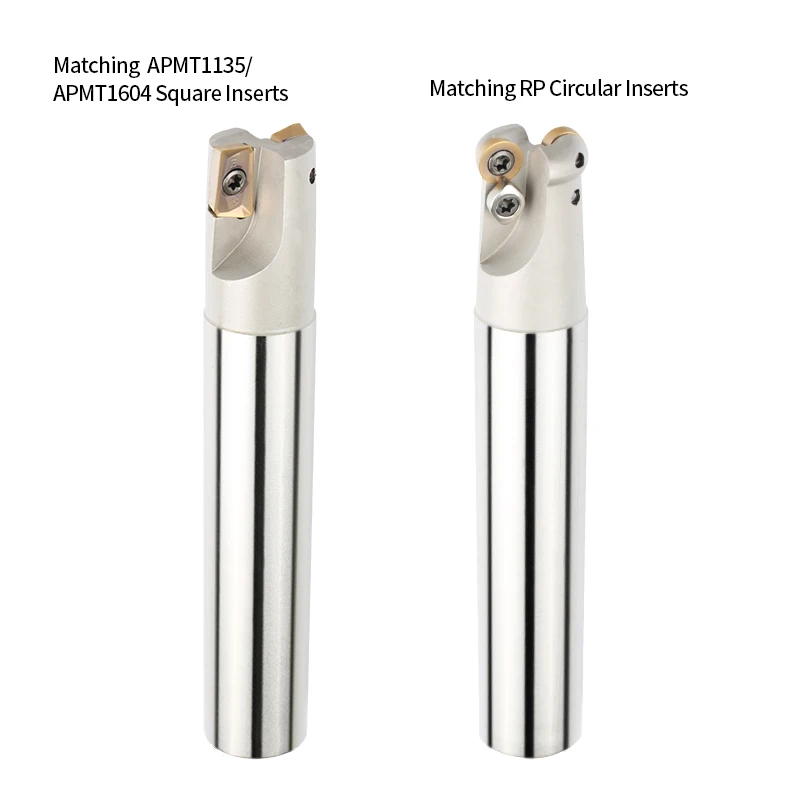

Both series use industry-standard indexable inserts, eliminating the need for proprietary or hard-to-source parts. The BAP300R/400R accepts square or diamond-shaped inserts (APKT, SPMT), while the MER series works with round or radius inserts (RCMT, RPMT)—all available in carbide grades optimized for specific materials:

•Aluminum: Uncoated carbide inserts with polished edges to prevent galling.

•Steel/Cast Iron: TiAlN-coated inserts for wear resistance.

•High-Temperature Alloys: Submicron carbide inserts with AlCrN coatings for heat resistance.

This compatibility lets B2B shops maximize insert life by rotating edges (each insert offers 4–8 usable edges) and replace only worn inserts—cutting per-part tool costs by 25% versus solid carbide bars. For example, a fabrication shop milling 500 aluminum brackets can use 10 inserts instead of 5 solid bars, saving hundreds in tooling expenses. The indexable design also supports fast changeovers (under 60 seconds per insert), critical for B2B job shops handling mixed orders with tight deadlines.

5. Full ODM/OEM Customization: Aligned with B2B Workflows

Recognizing that B2B machining needs are rarely “one-size-fits-all,” these cutter bars offer comprehensive ODM/OEM customization to solve unique challenges:

•Dimensional Modifications: Custom shank diameters (16mm–40mm), cutting diameters (10mm–50mm), and overall lengths (100mm–300mm) for specialized machines (e.g., large gantry mills or small benchtop CNCs).

•Insert Pocket Design: Modified pocket geometries to accept non-standard inserts (e.g., wiper inserts for mirror finishes or high-feed inserts for rapid material removal).

•Coating Alternatives: Custom coatings like TiN (for low-friction aluminum machining) or CrN (for corrosion resistance in wet environments) to match shop conditions.

•Branding & Traceability: Laser-etched part numbers, company logos, or batch codes for inventory tracking; custom packaging (bulk boxes for manufacturers, labeled kits for distributors) to streamline logistics.

For niche applications—such as micro-milling medical device components (with 10mm cutting diameters) or deep-cavity milling in industrial molds (with 300mm lengths)—this customization ensures the cutter bar performs optimally, avoiding the compromises of off-the-shelf tools.
