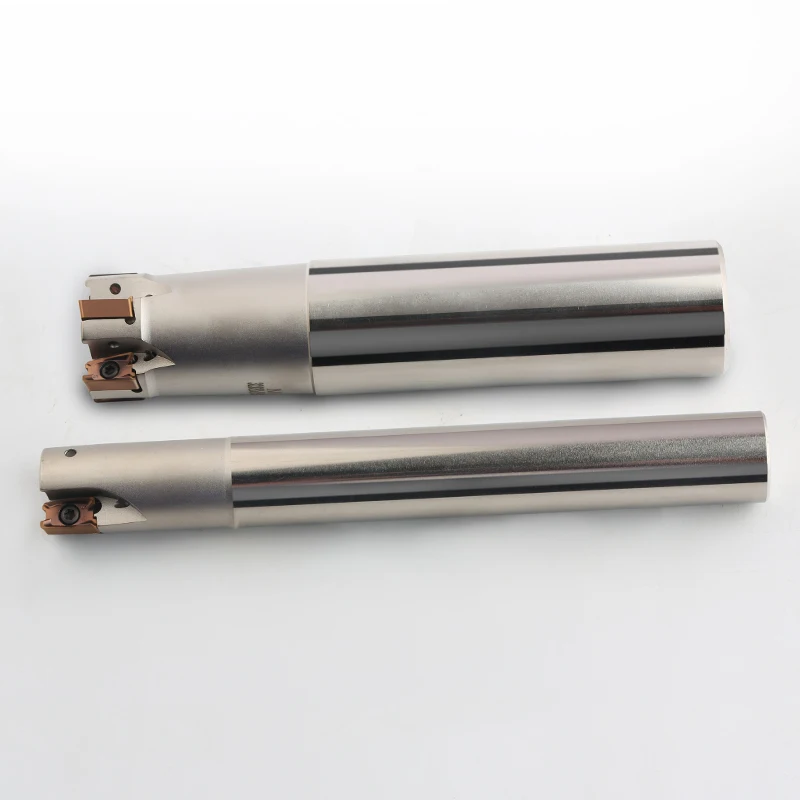

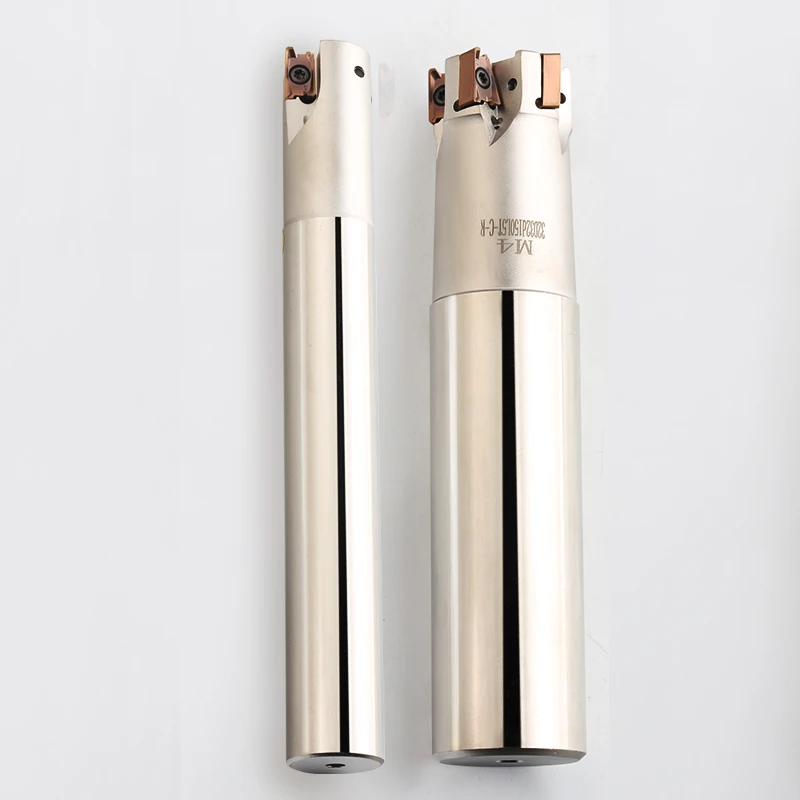

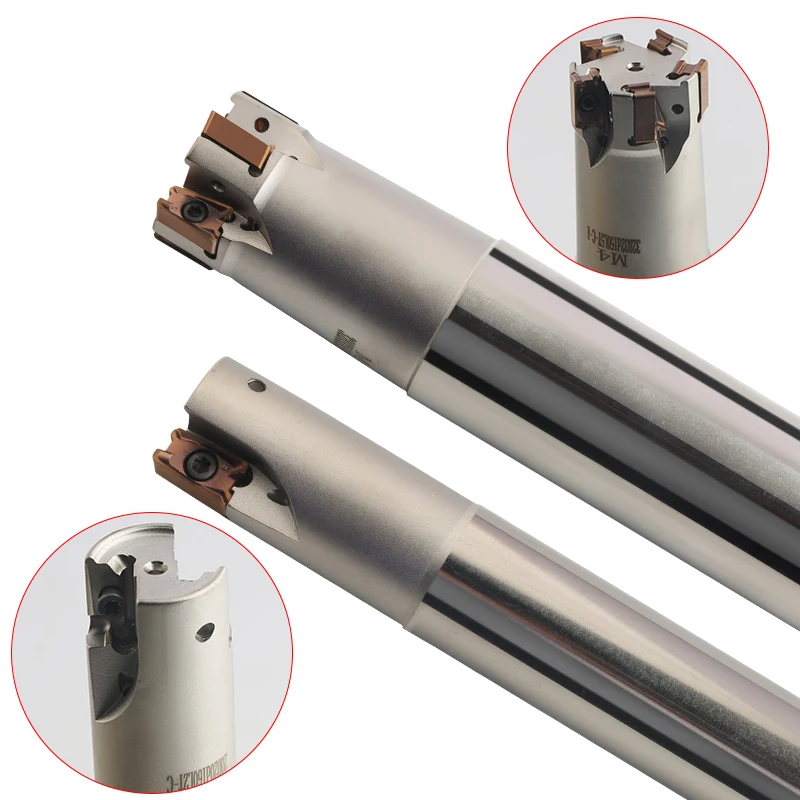

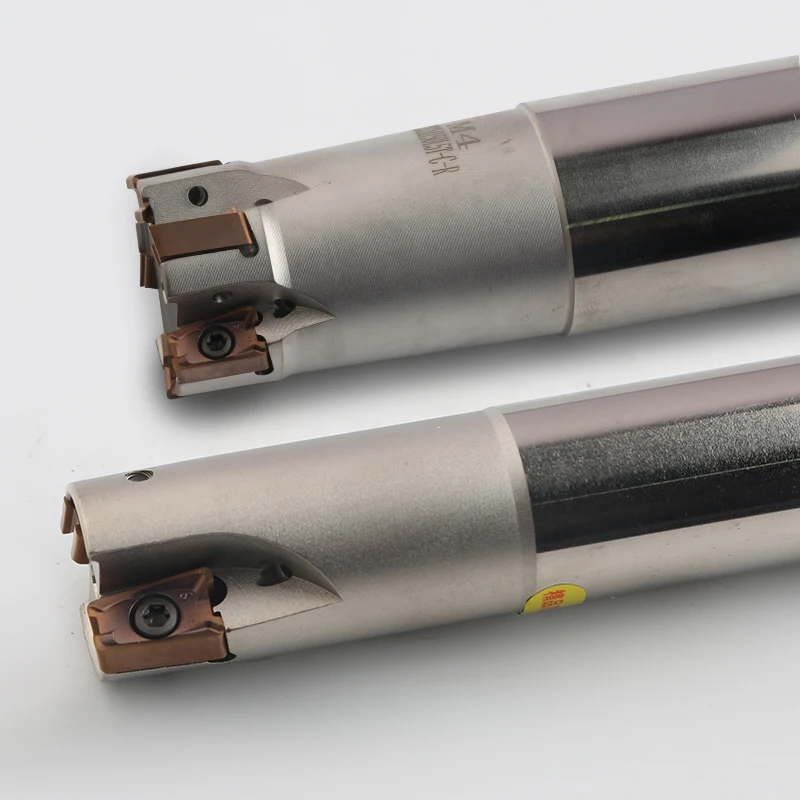

Tungsten Cobalt Alloy Double Sided Fast Feed Milling Cutter Tin Indexable Milling Cutter Bar Facing Cutter LN11 M4-C16-16-150

For B2B partners like heavy machinery manufacturers, automotive part producers, and industrial fabrication shops, the Tungsten Cobalt Alloy Double Sided Fast Feed Milling Cutter (Model LN11 M4-C16-16-150) redefines efficiency in high-volume material removal. Engineered with a tungsten cobalt alloy body, TiN-coated indexable inserts, and a double-sided design, this facing cutter excels at rapid, precise milling of metals—from carbon steel and cast iron to alloy steel (up to 35 HRC). Its compact dimensions (16mm cutting diameter, 150mm overall length) and M4 shank make it ideal for tight spaces and high-speed CNC machines, while its fast feed capabilities reduce cycle times by 40% compared to conventional milling cutters. Below, explore the key advantages that make this tool a game-changer for B2B operations prioritizing productivity and durability.

1. Tungsten Cobalt Alloy Construction: Unmatched Wear Resistance

At the core of this milling cutter is a high-density tungsten cobalt alloy (WC-Co) body, containing 90% tungsten carbide and 10% cobalt—a material combination renowned for its exceptional hardness (92 HRA) and wear resistance. Unlike standard steel or HSS cutters that dull quickly under heavy feed rates, this alloy maintains its structural integrity even when subjected to the high friction and heat of fast feed milling (up to 2,000 mm/min).The tungsten cobalt alloy’s high compressive strength (4,500 MPa) allows the cutter to withstand aggressive material removal—up to 3mm depth of cut in carbon steel—without deformation. For B2B facilities machining large batches of cast iron engine blocks or steel structural components, this durability translates to 5–7x longer tool life than HSS alternatives, reducing tool replacement frequency and unplanned downtime. The alloy’s thermal conductivity also dissipates heat efficiently, preventing workpiece warping—a critical advantage when milling thin-walled parts like aluminum brackets.

2. Double Sided Indexable Inserts: Maximizing Tool Life & Cost Efficiency

A standout feature of this cutter is its double sided indexable inserts, each offering 8 usable cutting edges (4 per side) compared to the 2–4 edges of single-sided inserts. This design dramatically extends insert life, allowing B2B shops to complete 2–3x more workpieces per insert change. When one edge wears, operators simply flip the insert to expose a fresh edge—no need for full insert replacement—cutting per-part tool costs by 30%.The inserts are crafted from the same tungsten cobalt alloy as the cutter body and coated with titanium nitride (TiN), a gold-colored layer that reduces friction by 35% and resists adhesion of metal chips. This TiN coating is particularly effective for milling sticky materials like low-carbon steel, where chip buildup can ruin surface finishes or cause insert failure. For example, a fabrication shop milling 1000 steel plates can reduce insert consumption from 50 to 20 inserts using this double-sided design, lowering annual tooling costs significantly.

3. Fast Feed Geometry: Boosting Productivity for High-Volume Production

Engineered with a specialized fast feed geometry, the LN11 M4-C16-16-150 cutter is optimized for rapid material removal without sacrificing precision. Its large rake angle (18°) and positive cutting edge geometry reduce cutting forces by 25%, allowing higher feed rates (up to 2,000 mm/min) than conventional facing cutters. This means a B2B manufacturer producing steel brackets can complete a batch of 500 parts in 3 hours instead of 5, meeting tight delivery deadlines for automotive or construction clients.The cutter’s chip pocket design is also tailored for fast feed applications, featuring wide, curved flutes that efficiently evacuate chips—preventing re-cutting and reducing heat buildup. This is critical for avoiding workpiece damage in high-speed operations, where trapped chips can scratch surfaces or cause tool jamming. Even at maximum feed rates, the cutter maintains surface finishes as smooth as Ra 1.6μm, eliminating the need for secondary grinding in many applications.

4. Precise Dimensional Design: LN11 M4-C16-16-150 for Versatile Machining

The cutter’s standardized dimensions—LN11 (series code), M4 (shank thread size), 16mm (cutting diameter), 16mm (insert size), and 150mm (overall length)—ensure compatibility with a wide range of CNC milling machines and manual mills. The M4 threaded shank fits securely into standard tool holders, minimizing runout (≤0.005mm) during high-speed rotation (up to 6,000 RPM).This compact design (16mm cutting diameter) makes it ideal for milling small to medium-sized workpieces, such as:

•Automotive: Brake caliper mounting faces, transmission component flanges.

•Industrial Machinery: Hydraulic cylinder end caps, gearbox housing surfaces.

•Fabrication: Steel bracket mating faces, aluminum connector flanges.

For B2B shops with limited workspace or needing to mill in tight cavities (e.g., inside engine blocks), the 150mm overall length provides sufficient reach without sacrificing rigidity—preventing vibration that can degrade accuracy.

5. OEM-Ready Versatility: Adapting to Custom B2B Needs

While the LN11 M4-C16-16-150 is a standardized model, its design supports easy adaptation for OEM/ODM requirements, making it suitable for custom B2B applications:

•Insert Material Options: For machining harder materials (up to 45 HRC), the cutter can be paired with submicron tungsten carbide inserts with TiAlN coatings, extending tool life by an additional 20%.

•Shank Modifications: Custom shank sizes (e.g., M5, M6) or non-threaded designs (e.g., straight shanks for collet holders) to fit proprietary machinery.

•Length Adjustments: Shortened (100mm) or extended (200mm) overall lengths for specialized reach needs, such as deep cavity milling or surface finishing on large workpieces.

•Branding: Laser-etched part numbers, company logos, or cutting parameter guidelines (e.g., “Max Feed: 2,000 mm/min for Steel”) for inventory tracking or distributor branding.

This adaptability makes the cutter a flexible solution for niche B2B applications, from aerospace component milling to custom industrial tooling production.

6. Facing Cutter Excellence: Flatness & Accuracy for Critical Surfaces

As a dedicated facing cutter, this tool excels at creating flat, perpendicular surfaces—critical for parts that require tight assembly tolerances. Its precision-ground cutting edges ensure face flatness within ±0.01mm/100mm, meeting the strict standards of automotive and aerospace industries. For example, a B2B supplier machining engine cylinder heads relies on this cutter to achieve flat mating surfaces that ensure proper gasket sealing and prevent oil leaks.The cutter’s balanced design minimizes vibration during facing operations, eliminating “waviness” or “chatter marks” that can compromise part functionality. This consistency reduces scrap rates by 25% compared to less precise tools, saving B2B facilities thousands in rework costs annually.
